AMC and GI introduce the Q.monixx 100 and Q.monixx A117-D, versatile data loggers featuring eight universal analog channels for voltage, current, resistance or temperature measurements alongside digital inputs, outputs and relay contacts. Four independent storage modules record data in parallel on USB, SD or GI.cloud at sample rates. Edge computing enables local processing, while OPC UA, MQTT and EtherCAT compatibility ensures integration into industrial process monitoring, test benches and supervision.
Table of Contents: What awaits you in this article
Q.monixx 100 and A117-D deliver rugged hardware, intelligent software
Engineered for operation in demanding industrial settings, the Q.monixx 100 and A117-D leverage robust construction and flexible, modular I/O architecture to withstand temperature extremes, vibration, and electromagnetic interference. Combined with advanced embedded analytics and customizable software frameworks, they deliver real-time data acquisition, edge computing capabilities, and seamless integration with automation networks. This synergy of hardened hardware and intelligent software ensures continuous, reliable performance even under the most manufacturing monitoring conditions.
High-Precision Q.monixx A117-D Offers Eight Analog Inputs, Flexible Outputs
Featuring eight universal analog channels, the Q.monixx A117-D accepts voltage, current, two and four wire resistance, potentiometer, PT100, and PT1000 temperature sensors. Each channel operates with a 24-bit ADC and supports sampling rates to 100 readings per second. The device also offers eight configurable digital inputs and four digital outputs that can function as open-collector, TTL, PNP, or HTL interfaces. Two relay contacts provide further control flexibility for signal acquisition.
Four independent loggers enable parallel sampling from 0.01 seconds
Four independently configurable data loggers enable parallel sampling rates ranging from 0.01 seconds up to 24 hours, allowing synchronized high-speed and long-term measurements. Data can be stored locally on USB drives or SD cards or seamlessly uploaded to the GI.cloud, where process variables are securely archived for real-time access and retrospective evaluation. This architecture delivers continuous reliable logging, combining precise temporal resolution with archival integrity to eliminate data loss risks.
Galvanically Isolated RS485 and SDI12 Enable External Sensor Connectivity
Galvanically isolated serial connections, including RS-485 and SDI-12, allow seamless attachment of diverse external sensors. For supervisory communication, the unit offers Ethernet, USB ports, and an optional external modem. Industry-standard messaging protocols such as MQTT, OPC UA, and EtherCAT facilitate standardized data exchange. By supporting direct interfaces to SCADA platforms, NI LabVIEW, and MATLAB, Q.monixx data loggers integrate effortlessly into existing automation and analytical infrastructures, ensuring seamless streamlined setup and reliability.

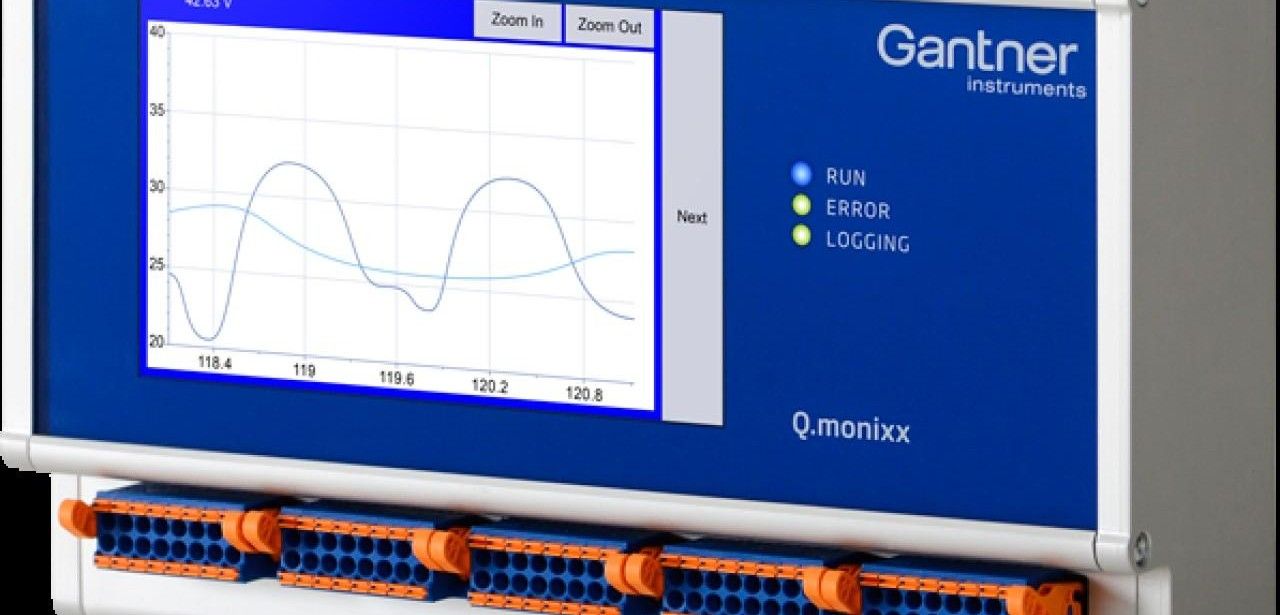

Q.monixx A117-D Offers 5-Inch TFT Touch Display Monitoring Interface
The Q.monixx A117 D-version integrates a 5-inch TFT touch display with WVGA 800Ã480 resolution, offering an intuitive interface for real-time monitoring of precise measurement parameters. Users can configure alarms, adjust recording intervals directly at the device without additional software. The automatic display shutdown timer is programmable between 10 seconds and 10 minutes, balancing accessibility and power conservation. This feature supports efficient on-site operations and extends battery life in field applications.
EMC Compliance EN 61000-4 EN 55011 Guarantees Interference-Free Operation
Electromagnetic compatibility compliant with EN 61000-4 and EN 55011 ensures uninterrupted operation in harsh industrial environments, preventing electrical interference from compromising system performance. Galvanic isolation between input channels, communication interfaces, and power supply eliminates ground loops and potential surges, safeguarding sensitive electronics against damage. Operating on a 10 to 30 VDC power range and featuring DIN-rail mounting, this compact logger integrates seamlessly into existing control cabinets without additional hardware.
Q.monixx Loggers Provide Robust Modular Monitoring For Industrial Environments
Designed for deployment within industrial machinery, advanced test benches, or continuous facility monitoring, the Q.monixx data loggers deliver uncompromising durability in harsh environments. Their scalable modularity supports diverse input and output configurations, while integrated edge computing accelerates local data analysis. Robust communication protocols ensure seamless integration with enterprise automation systems. Comprehensive software compatibility streamlines configuration, visualization, and reporting workflows, making these devices indispensable for demanding complex process control and diagnostics.
Q.monixx 100 and A117-D deliver flexible, precise edge computing
The Q.monixx 100 and A117-D units integrate edge-computing capabilities with modular universal inputs, digital I/Os, and advanced communication protocols, including OPC UA, MQTT, and EtherCAT, alongside cloud connectivity. Designed for harsh industrial environments, they deliver high-resolution 24-bit measurements, parallel local and cloud data logging, and intuitive touch display control. These rugged data loggers ensure precise, real-time monitoring, simplified configuration, and advanced fault tolerance, making them indispensable for distributed process monitoring.
