Rosenbergers modular connector systems utilize FAKRA, HFM(R), and RMC(R) interfaces for automotive camera applications in ADAS, driver monitoring, and autonomous driving. These compact solutions support frequencies up to 12 GHz, provide EMI shielding, and offer mechanical tolerance compensation. Offered in pigtail, DirectLink, or wire-to-board versions with optimized SMD footprints, they feature 50 Ω impedance and endure at least ten mating cycles, ensuring highly reliable integration in front, rear, and surround-view camera systems.
Table of Contents: What awaits you in this article

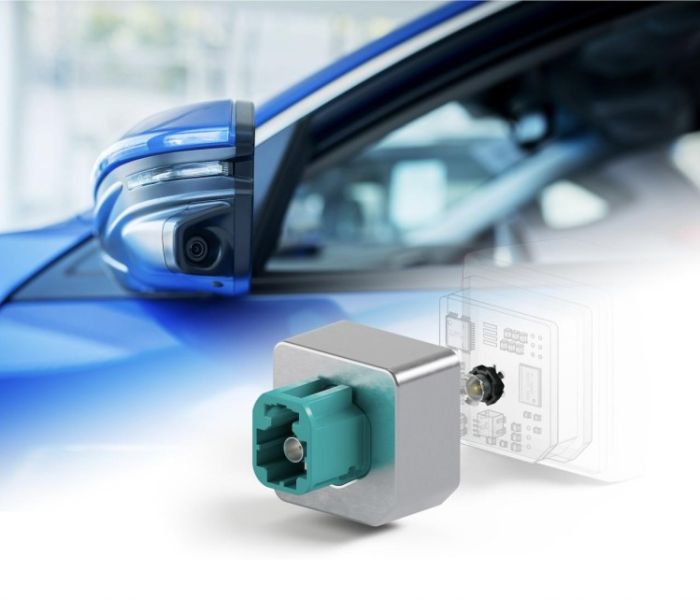

Rosenberger launches modular connector solutions for automotive camera systems

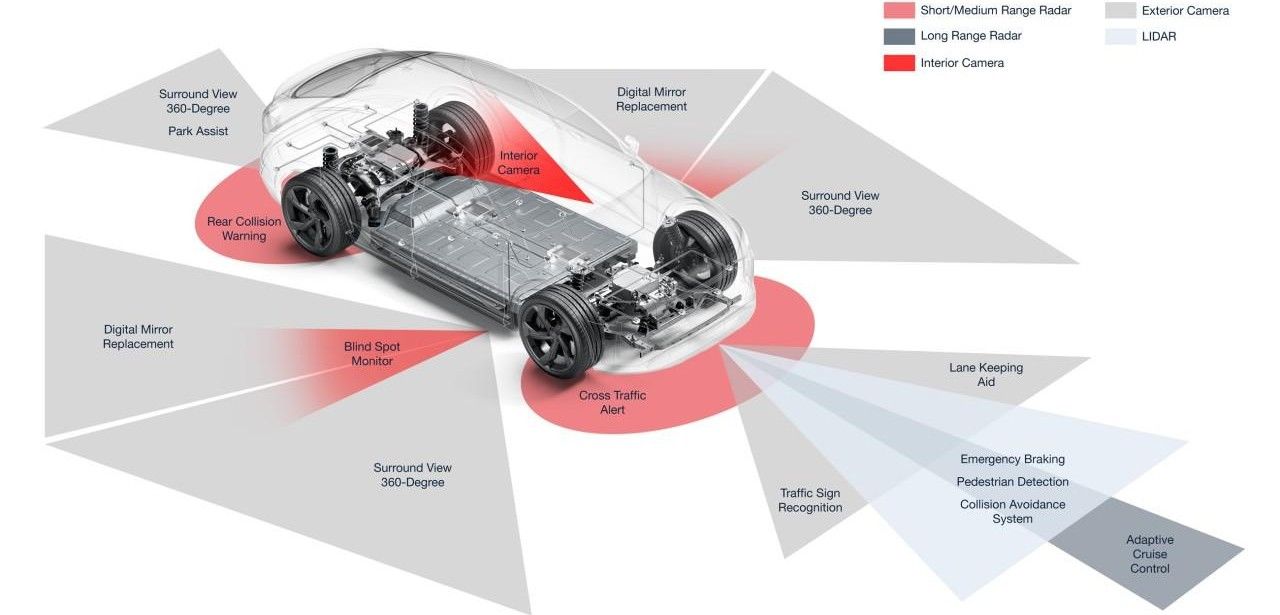

Camera Automotive Anwendung (Foto: Rosenberger Hochfrequenztechnik GmbH & Co. KG)
In its portfolio, Rosenberger introduces modular connector systems tailored specifically for automotive camera applications including driver assistance, driver monitoring, and autonomous driving. Engineered with compact form factors and robust electromagnetic shielding, these solutions deliver high-speed data transmission while adhering to stringent automotive quality standards. By leveraging advanced materials, precision manufacturing techniques, and flexible design options, the connectors facilitate seamless integration into vehicle architectures, ensuring reliable performance in demanding environmental conditions.
Modular coaxial connectors support DC to 12GHz stable transmission
The connection solutions utilize coaxial interfaces FAKRA, HFM(R) and RMC(R) to cover DC to 12 GHz frequency bands. Designed with a controlled 50 Ω impedance and supporting at least ten mating cycles, they ensure consistent signal integrity in automotive environments. Available in models with or without tolerance compensation of up to 0.5 mm in X, Y and Z axes and tilt angles up to 1.5°, these connectors address diverse mechanical and alignment requirements.
Modular connector system streamlines dense PCB and enclosure integration
The modular connector system streamlines integration into high-density PCBs or enclosures by offering customizable housings in metal or plastic, tailored to each applications mechanical and environmental requirements. It includes various pigtail configurations, comprehensive design guidelines, and precisely optimized SMD footprints suitable for different substrate thicknesses. By providing detailed layout recommendations and ready-to-use connector modules, it significantly reduces development cycles, minimizes prototyping iterations, and accelerates time-to-market for high-volume series production deliverables.
DirectLink-Pigtail concept enables high-quality EMV-safe connections in tight spaces
In confined spaces such as behind the rearview mirror or within the headliner, the DirectLink Pigtail concept excels by minimizing installation footprint while preserving exceptional signal integrity and enhanced EMC shielding. Its compact Wire-to-Board interfaces ensure consistent performance under tight packaging constraints, supporting high-resolution interior cameras for driver monitoring tasks like gaze tracking and fatigue detection. Seamless integration is achieved through robust mechanical design facilitating automated assembly in vehicle interiors.
Rosenberger unveils robust camera connectors for advanced ADAS applications
Rosenbergers camera connectivity solutions have been engineered specifically to meet the stringent requirements of advanced driver assistance systems, reversing cameras, camera-based side mirror replacements, and in-vehicle occupant monitoring systems. Constructed from high-performance materials with mechanical stability and incorporating proven electromagnetic interference shielding, these interconnects undergo automated production processes, delivering consistent quality and optimal yield. OEMs and Tier-1 suppliers benefit from high-volume availability, streamlined assembly operations, and a cost-effective series production platform.
Modular Camera Connectors Ensure High-speed Data Robust EMC Protection
Rosenberger’s modular camera link systems deliver exceptional data throughput, streamlined integration, and reliable electromagnetic compatibility protection for vehicles. Featuring an adaptable structure, interchangeable housing configurations, and customizable pigtail or wire-to-board connections, these solutions support a wide range of automotive platform layouts. Their attributes, combining superior performance, dependability, and cost-effective manufacturing, ensure smooth implementation. OEMs and Tier 1 suppliers benefit from a ready-to-deploy connectivity solution tailored to evolving in-vehicle camera requirements.
