The SCHURTER EDC switch delivers arc-free DC switching in compact systems by combining actuation with integrated electronics. Through early arc detection, it interrupts currents up to 48 VDC at 10 A before spark formation. Over one million cycles ensure high durability and low maintenance. Available as a standalone unit (EDC 02) or tailored for the MSM II actuator (EDC 01), it supports efficient, long-lasting operation in automotive, aerospace and industry.
Table of Contents: What awaits you in this article
SCHURTER EDC Enables Arc-Free DC Switching With Integrated Electronics
The SCHURTER EDC direct current switch integrates microswitch mechanics with built-in power electronics to provide reliable DC switching. Its advanced architecture detects contact separation early and interrupts currents up to 48 VDC and 10 A before sparking can occur. This proactive interruption eliminates contact arcing, extends life beyond one million cycles, and reduces EMI emissions. Design enables integration into mobility, aerospace, robotics, and industrial control systems requiring consistent arc-free performance.
Integrated EDC Electronics Detects Separation Early, Ensures Controlled Shutdown
The integrated electronics of the EDC detect separation events early and regulate current interruption at up to 48 VDC and 10 A with precise control. This mechanism prevents arc formation during contact opening and protects sensitive downstream circuits from electromagnetic interference. Continuous monitoring ensures reliable shutoff sequences under demanding operating conditions, preserving component integrity, boosting system resilience, and reducing maintenance requirements, delivering overall consistent performance throughout extensive service life.
Arc-free Switching Enables Over One Million Reliable Operational Cycles
When switching occurs without arc formation, contact surfaces avoid erosive wear, resulting in exceptional long-term durability. The SCHURTER EDC provides over one million switching cycles, substantially reducing the maintenance demands and spare parts costs. Users benefit from a reliable switching device designed to sustain high performance during continuous operation. By combining arc-free technology with robust contacts, the EDC offers a cost-effective, high-reliability solution especially ideal for challenging DC switching applications.
Compact SCHURTER EDC Switch Enables Performance In Confined Spaces
The EDCs compact dimensions enable installation in tight enclosures without performance compromises. It integrates seamlessly into onboard electrification architectures, supporting traction battery subsystems and auxiliary power modules while conserving space. Aerospace applications exploit its minimal footprint for flight control and power distribution panels. Mobile robots benefit from reduced cabinet volume. Industrial automation with battery-backed DC grids relies on quick mounting and enhanced energy efficiency, significantly reducing installation time and costs.

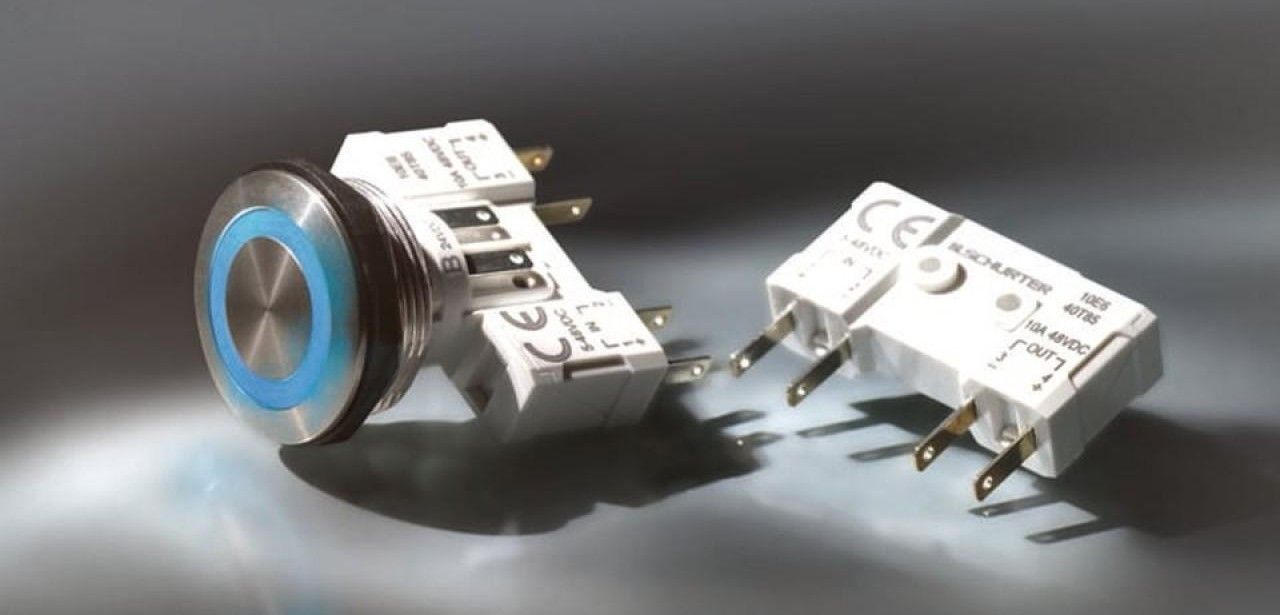

Stand-alone EDC 02 and EDC 01 for MSM II
Available either as the standalone EDC 02 for generic pushbuttons or as the EDC 01 specifically designed for the MSM II actuator, the SCHURTER Electronic Direct Current switch delivers robust switching performance at 48 VDC and up to 10 A. The EDC family addresses various integration requirements by combining mechanical precision with embedded power electronics. Both versions ensure safe, arc-free interruption under demanding conditions without compromising reliability or electromagnetic compatibility.
SCHURTER EDC Switch Ensures Future-Proof DC Applications With Reliability
Combining advanced safety with a compact footprint, the Electronic Direct Current switch addresses growing demands in modern DC systems. Its EMC-compliant design reduces interference, ensuring signal integrity in densely packed circuitry. Robust electronics guarantee consistent switching performance under environmental stress like temperature shifts and vibration. Minimal electromagnetic emissions support reliable operation, making the SCHURTER EDC a future-ready solution for complex applications across transportation, industrial automation, and other demanding aerospace industries.
Compact EMC-Safe DC Switch Ensures Reliable Arc-Free Power Control
Developers gain a compact DC switching solution with the SCHURTER EDC switch, where mechanical micro-switch precision integrates with power electronics to achieve arc-free operation. Intelligent early arc detection ensures controlled current interruption up to 48 VDC and 10 A, protecting contacts and preventing emissions. Its EMC-compliant design limits interference, while two adaptable variants support standalone configurations or MSM II actuator integration. Over one million cycles ensure reliable and durable switching.
