The spo-comm BOX C475 integrates Intel Alder Lake-N architecture into a compact 114.8 × 76 × 27.1 mm chassis with fanless passive cooling for silent operation. Energy-efficient performance delivers dual HDMI 2.0 outputs at 4K/60Hz, Gigabit Ethernet, WiFi 6 and Bluetooth 5.2 connectivity. Its robust design withstands industrial conditions, while flexible operating system support?Windows 11 IoT, Windows 11 Pro or Ubuntu?ensures suitability for digital signage, kiosk and edge computing deployments.
Table of Contents: What awaits you in this article
BOX C475 thrives between 0°C and 40°C hostile environments

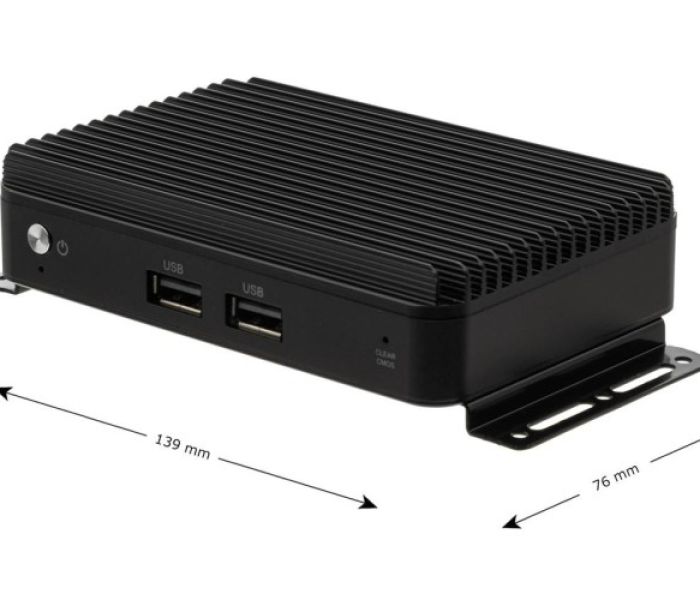

Maße des BOX C475 (Foto: spo-comm GmbH)
Operating between 0 °C and 40 °C, the BOX C475 withstands demanding conditions. Its fanless passive cooling design eliminates failure risks from moving parts, while a fully sealed chassis prevents dust ingress completely. These engineering features combine to provide reliable performance. This robustness ensures continuous functionality in industrial facilities and crowded public venues, delivering dependable system availability and peace of mind for mission-critical signage and kiosk applications requiring dust-free, temperature-resistant operation.
Dual 4K60 HDMI, USB3.2, WiFi6, Bluetooth in BOX C475
Equipped with two HDMI 2.0 outputs, the BOX C475 can drive dual 4K displays at 60 Hz, making it ideal for high-resolution digital signage or multi-screen workstations. Complemented by two USB 3.2 Gen2×1 ports, it supports touchscreen panels, barcode scanners, or external storage devices. The integrated Gigabit Ethernet port ensures stable wired connectivity, while WiFi 6 and Bluetooth 5.2 enable smooth, high-speed wireless networking and peripheral pairing, supporting versatile deployments.
Intel N100 Quad-Core with 8GB RAM Enables Power-Efficient Performance
Inside the compact enclosure, an energy-efficient Intel Processor N100 powers operations with four cores and clock speeds up to 3.4 GHz while consuming only 6 watts of thermal design power. Paired with 8 GB of high-speed LPDDR5/X memory, the system maintains an optimal performance-to-energy ratio, drawing just 7.5 W under idle conditions. This exceptional efficiency minimizes operating expenses, ensuring reliable continuous service and making the Mini-PC ideal for energy-conscious digital signage applications.
Free M.2 slot supports SATA and NVMe PCIe SSDs
Rückseite des BOX C475 (Foto: spo-comm GmbH)
The system features an M.2 slot compatible with both SATA and NVMe PCIe 3.0 x4 solid-state drives, delivering high-speed, versatile, scalable storage options. It accommodates fast data access and large file transfers. End users can select Windows 11 Professional, Windows 10/11 IoT Enterprise LTSC, or Ubuntu to tailor the software environment to requirements. This adaptability makes the platform ideal for customized kiosk terminals, edge computing deployments, or industrial automation systems.
Spo-comm launches configurable BOX C475 mini-PC available online now
The BOX C475 mini-PC is now available through spo-comms online shop at www.spo-comm.de. Users benefit from a configurable platform, choosing various SSD options and operating systems to suit project requirements. Orders can be placed without intermediaries. Thanks to its modular design and proven components, the system offers rapid delivery and reliable support. These features make the BOX C475 an ideal choice for businesses seeking tailored computing solutions with wait times.
Compact fanless BOX C475 delivers rugged connectivity, efficient performance
spo-comm BOX C475 mini PC combines passive cooling and a rugged chassis within a 114.8 × 76 × 27.1 mm footprint. Powered by an Intel N100 CPU up to 3.4 GHz and a 6 W TDP, it features dual HDMI 2.0 outputs at 4K60, WiFi 6, Bluetooth 5.2, Gigabit Ethernet, and two USB 3.2 Gen 2 ports. Flexible storage and OS choices deliver energy efficiency, long-term stability, and versatile deployment options across industries.
