STEGOs ESS 076 Smart Sensor measures all three phase currents simultaneously and contactlessly within a slim housing. Integrated current transformers convert each conductors current to precise electrical signals, outputting them via IO-Link or optional 4-20 mA. Seamless integration with automation and energy management systems enables load monitoring, rapid detection of imbalance and demand fluctuations. Reduced device count and simplified wiring cut cabinet space requirements and installation time supporting energy efficiency initiatives.
Table of Contents: What awaits you in this article
Optimize Energy Consumption with STEGO’s Compact Three-Phase Smart Sensor

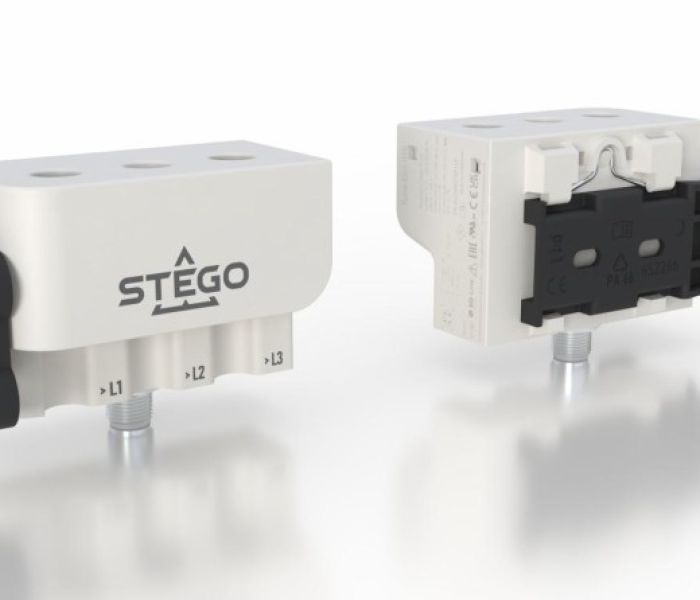

Smart Sensor Strom ESS 076 (dreiphasige Ausführung) von STEGO. (Foto: STEGO Elektrotechnik GmbH)
With energy costs ranking among the highest expenses for industrial operations, capturing consumption patterns is vital. The ESS 076 three-phase Smart Sensor by STEGO delivers simultaneous measurement across all phases within one compact unit. By providing accurate values, analytics, and load balance data through IO-Link or 4-20 mA interfaces, it enables real-time energy profiling. Operators benefit from optimized processes, reduced inefficiencies, and comprehensive insights that drive cost-effective facility management strategies.
ESS 076 sensor delivers simultaneous, contactless three-phase current measurements
The ESS 076 harnesses integrated current transformers to measure all three conductors simultaneously and contactlessly, even under unbalanced loads. It accurately identifies phase imbalances, transient peaks, and efficiency losses with precision. Onboard processing converts raw signals into calibrated measurements, which users can select to output either as an analog 4-20 mA signal or digitally via IO-Link. This dual-interface design enables seamless integration into legacy installations as well as modern automation environments.
ESS 076 consolidates three sensors into one IO-Link device
By integrating the ESS 076 in place of three separate current sensors, users can consolidate conventional measuring devices into a single compact unit. This design significantly reduces control cabinet space requirements and minimizes installation efforts. Employing IO-Link communication enables a solitary master port, decreasing the number of interfaces and cable runs by two thirds. As a result, commissioning times are shortened, maintenance procedures streamlined, and fault diagnosis noticeably accelerated overall.
Three Conductors Simply Routed Through Sensor For Efficient Measurement

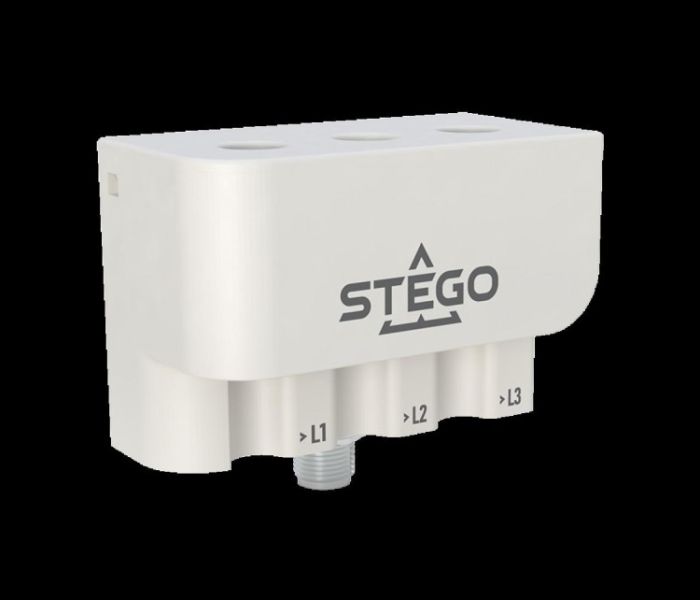

Smart Sensor Strom ESS 076 (dreiphasige Ausführung) von STEGO. (Foto: STEGO Elektrotechnik GmbH)
To perform measurements, three conductors are threaded through pre-punched sensor apertures. Inside, current transformers convert each phases current into galvanically isolated electrical signals, ensuring total separation. The ESS 076 supports conductors up to 11.4 millimeters in diameter. After conversion, in-built electronics process the signals, boosting accuracy and stability before outputting accurate and reliable, real-time current readings. Providing highly dependable measurement data, consistent results without compromising conductor integrity or operational safety.
ESS 076 provides process device diagnostic data via IO-Link

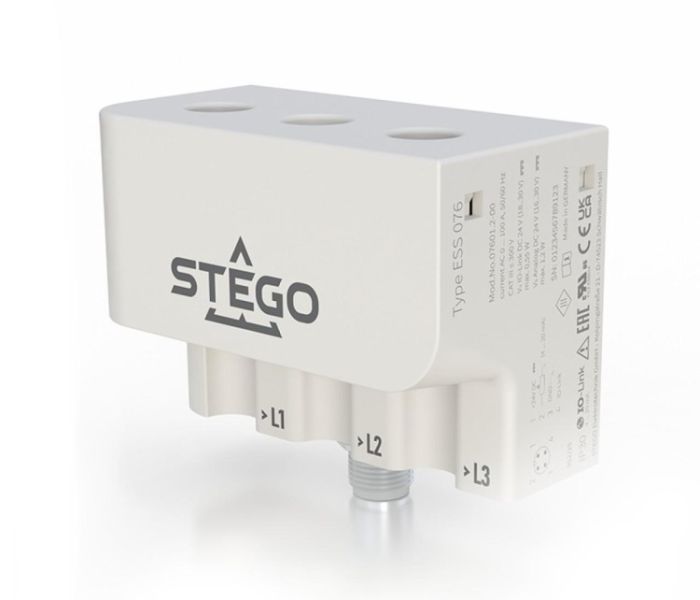

Smart Sensor Strom ESS 076 (dreiphasige Ausführung) von STEGO. (Foto: STEGO Elektrotechnik GmbH)
Beyond delivering precise current measurements, the ESS 076 leverages IO-Link to transmit an extensive array of process, device-level and diagnostic data directly to automation and energy management platforms. This rich data foundation uncovers detailed load patterns, transient events and operational anomalies within machinery and installations. Armed with these insights, manufacturers can implement predictive maintenance strategies, optimize equipment performance and enable energy efficiency initiatives, ultimately reducing downtime and lowering operational costs.
The three-phase Smart Sensor Strom ESS 076 from STEGO provides electronics enthusiasts and industrial operators with a compact, easily installed and integrated solution for precise electrical load monitoring. It delivers transparent measurements across all three phases, minimizes cabinet space and wiring requirements, and supports extensive IO-Link data communication. This sensor establishes a foundation for sustainable energy optimization and increased efficiency in contemporary installations by enabling accurate phase-by-phase analysis and maintenance.
