The shielded SS-69000-001 Modular Jack from Stewart Connector/Bel integrates Single Pair Ethernet (SPE) with Power-over-Data-Line (PoDL), combining data and power transmission over a single twisted pair at speeds up to 1000Base-T1. Its compact design, rugged construction, and simple mounting reduce installation time and costs while boosting infrastructure scalability. The connector enhances energy efficiency and provides robust EMI shielding, making it an ideal solution for intelligent building and industrial automation applications.
Table of Contents: What awaits you in this article

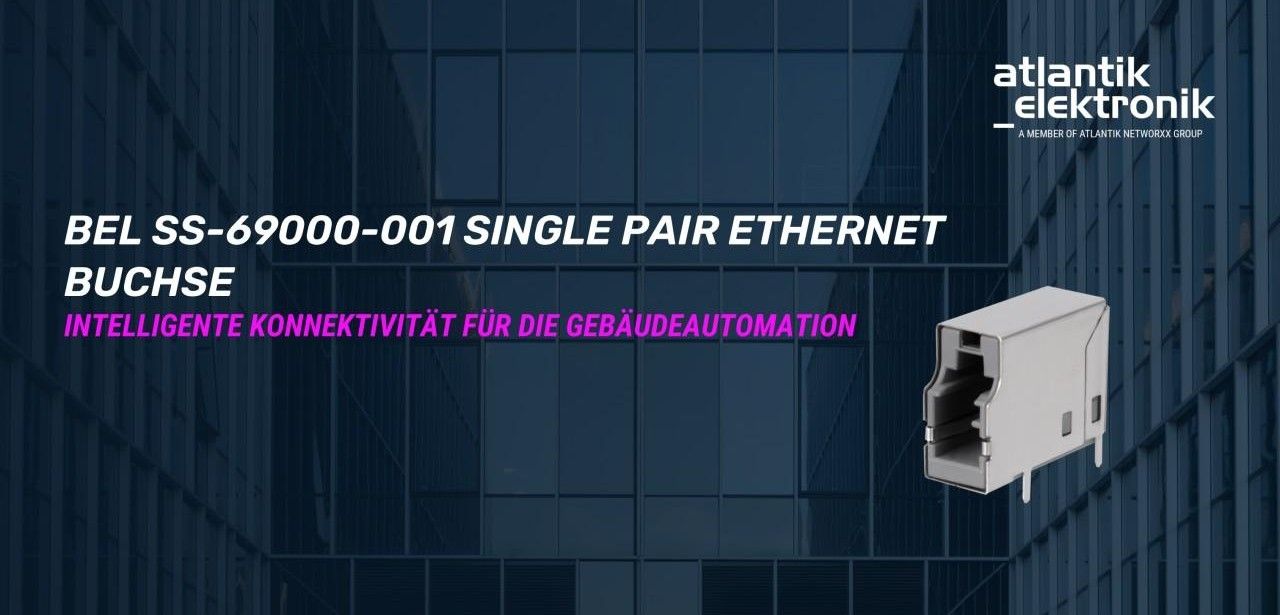

Atlantik Elektronik unveils shielded modular SPE jack supporting PoDL
Atlantik Elektroniks new shielded SS-69000-001 Single Pair Ethernet receptacle from Stewart Connector/Bel consolidates data and power transmission over a single twisted pair cable supporting 1000Base-T1 via Power-over-Data-Line. This connector simplifies wiring by replacing traditional four-pair cables, cutting material and installation costs. Optimized for intelligent building networks and industrial automation, the solution meets robust connectivity demands by improving scalability, minimizing signal interference, and enabling flexible deployment of sensors and smart devices.
Single Twisted Pair Simplifies Wiring, Reduces Installation, Material Costs
In comparison to traditional four-pair Ethernet systems, a single twisted pair cable requires only two conductors, simplifying the wiring process, reducing cable bulk, and lowering material consumption. This streamlined cabling approach decreases installation time and labor costs. Furthermore, the reduced number of conductors and lighter shielding allow for extended transmission distances and more adaptable routing options within building infrastructures. Deploying single-pair Ethernet enhances cost effectiveness, flexibility, and scalability in installations.
Class 15 PoDL Powers Sensors Directly Over Ethernet Cable
By leveraging PoDL support up to Class 15, devices such as sensors, control modules, lighting units, and embedded components receive power directly through the Ethernet cable. This integrated energy delivery removes the need for separate power wiring, streamlining installation and reducing material costs. The approach enhances system reliability reducing points of failure and cable clutter, while improving energy efficiency in smart buildings. Simplified infrastructure supports scalable network deployment diverse applications.
SS-69000-001 Features Shielded PBT Housing Ensuring Stable Connections Industrially
Equipped with a PBT plastic housing and gold-plated contacts, the SS-69000-001 maintains reliable connections through temperature ranges of â20 °C to +60 °C. Its shielded construction provides excellent EMI suppression, protecting signals in challenging settings. Compliance with IEC 63171-1 ensures industrial-grade strength and consistent performance in harsh environments. Designed for durability and stability, this connector supports automation and communication applications by delivering uninterrupted data transfer while guarding against electromagnetic interference.
Horizontal 90° PCB Mount Jack Features Integrated Light Guide
This connector features a horizontal ninety-degree through-hole mounting style compatible with standard printed circuit boards, enabling robust mechanical support and straightforward soldering processes. It offers the option to install a built-in light pipe assembly for efficient optical routing of LED signals. Paired with external LED indicators, it delivers immediate visual confirmation of network link status directly on the host device, streamlining diagnostics, reducing maintenance time, and enhancing overall operational reliability.
Compact Bel SS-69000-001 SPE Jack Enables Building Automation Integration
Featuring a compact footprint and outstanding performance, the Bel SS-69000-001 SPE jack optimizes connectivity in automation. The single pair Ethernet interface supports high-speed data transmission and delivers power directly to devices, eliminating the need for separate power supplies. Engineered for integration, it boosts scalability in Ethernet switches, intelligent lighting, security systems, and access control panels. Its durable design ensures reliable operation within HVAC controls and factory sensors in building environments.
Shielded SS-69000-001 Connector Delivers Data And Power In Module
Stewart Connector/Bel’s shielded SS-69000-001 Single Pair Ethernet connector integrates data transmission and power delivery into a compact module, reducing cabling complexity. Supporting Power-over-Data-Line up to Class 15, it eliminates separate power wiring, supplying devices directly through the Ethernet line. Constructed to IEC 63171-1 standards with a shielded design, gold-plated contacts and PBT housing ensure reliable performance in demanding environments, making it an ideal solution for smart building and industrial automation.
