Telemeter Electronic as Teledyne LeCroys partner unveils the T3DSO700HD series of digital oscilloscopes featuring 12-bit resolution, up to 2 GSa/s sampling rates, bandwidth options spanning 70 to 200 MHz, and per-channel memory depth of 100 Mpts. These instruments integrate a built-in function generator, optional mixed-signal capabilities, sequenced acquisition mode, webserver-based remote control and serial bus decoding support, delivering precise measurements and a modern user experience for IoT development and validation.
Table of Contents: What awaits you in this article

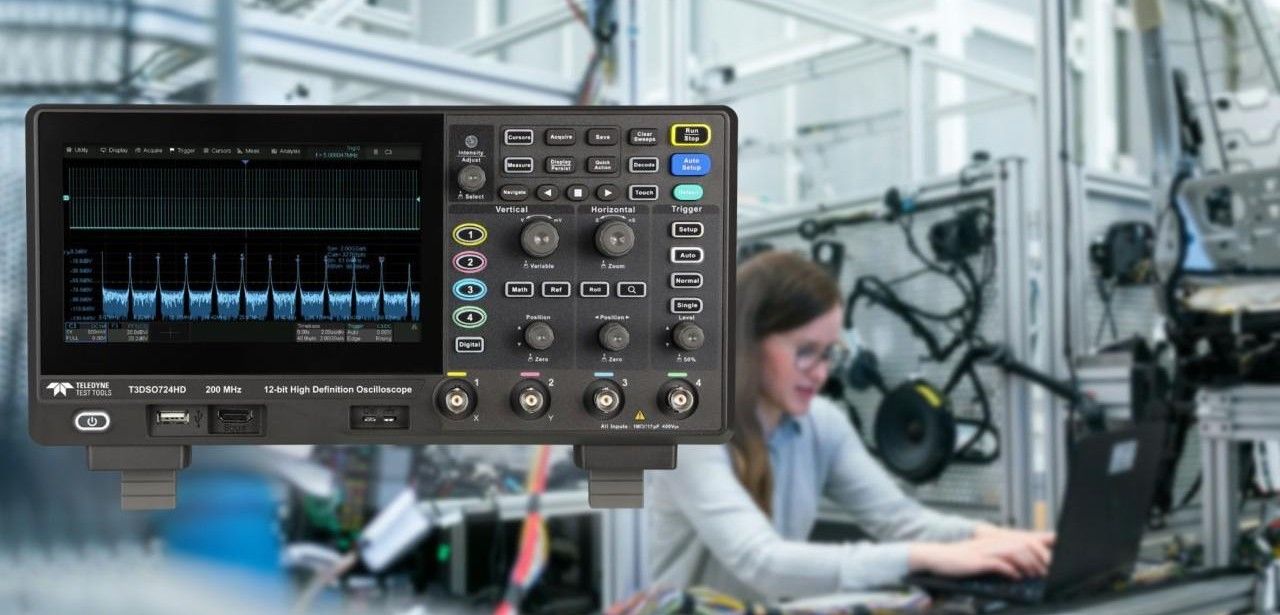

Telemeter Electronic Introduces 12-Bit T3DSO700HD Oscilloscopes with 200MHz Bandwidth
Telemeter Electronic, a long-standing partner of Teledyne LeCroy, introduces the T3DSO700HD series. These digital oscilloscopes offer bandwidths from 70 to 200 MHz and feature a 12-bit ADC resolution, enabling high-precision voltage measurements. With sampling rates up to 2 GSa/s, they capture intricate signal details for comprehensive analysis. Deep memory buffers ensure extensive waveform storage, facilitating extended acquisitions. The devices support advanced triggering, precise timing measurements, and intuitive controls for workflows.
12-bit ADC with 100 Mpts memory enables detailed capture
Leveraging a high-performance twelve-bit analog-to-digital converter, the T3DSO700HD series delivers superior vertical resolution and highly accurate voltage measurements across a broad dynamic range. Each channel supports sampling rates up to two gigasamples per second, ensuring fast signal acquisition. Coupled with a one-hundred-megpoint memory depth per channel, the oscilloscopes capture intricate waveform details over extended time windows. This combination enables comprehensive analysis of complex electronic signal patterns with truly exceptional precision.
Oscilloscopes Achieve 70 µVrms Noise Floor at 200 MHz
This low noise floor of just 70 µVrms at 200 MHz ensures exceptionally clear signal acquisition, enabling precise observation of subtle voltage fluctuations. Superior dynamic range expands the measurable amplitude spectrum, significantly reducing measurement distortions and enhancing resolution of minute waveform details. Such capabilities streamline debugging workflows by identifying elusive faults, support rigorous validation of IoT hardware designs, and contribute to reliable performance analysis in demanding electronic testing environments globally.
T3DSO700HD oscilloscope enables serial bus triggering and protocol decoding
By integrating specialized trigger and decoding capabilities for I²C, SPI, UART, CAN, and LIN buses, the T3DSO700HD series lets engineers probe serial communication protocols directly on the oscilloscope. Automated packet recognition, error flag identification, and time-stamp correlation simplify detailed timing evaluation. Users can capture waveforms, filter out irrelevant traffic, and visualize decoded messages alongside analog signal traces. This approach accelerates debugging, reduces setup complexity, and improves insight into protocol exchanges.
Built-in Function Generator, MSO Simplify Electronics Testing Without Accessories
A built-in function generator supplies a library of predefined waveforms, including sine, square, triangle, and arbitrary signals, enabling deployment in diverse testing routines. Concurrently, the optional mixed-signal oscilloscope upgrade provides multiple digital channels, facilitating parallel capture of analog and digital events. This integrated configuration streamlines validation workflows by eliminating the need for external signal sources or logic analyzers, thereby accelerating amplifier, power supply, and control loop characterization while preserving workspace.
System Analysis Simplified With Bode Plots And Performance Testing
Featuring integrated Bode plot tools and power analysis features, this series streamlines comprehensive system evaluation with automated test sequences. Engineers can effortlessly assess frequency response characteristics, chart amplifier transfer curves, and quantify energy efficiency in IoT electronics. Combining analysis routines allows users to gain insights into component behavior under varied conditions. Automated procedures eliminate manual calculations, reduce measurement variability, and accelerate validation cycles, enabling precise optimization in troubleshooting and maintenance.
Sequence Mode Captures Half-Million Waveforms, Reveals Transient IoT Faults
With its Sequence Mode, the oscilloscope captures up to 500,000 waveforms per second, reliably recording even infrequent or fleeting signal events. By segmenting acquisition memory into bursts, this mode ensures critical anomalies are not overlooked. Engineers can isolate and analyze transient disturbances that occur sporadically in complex, distributed IoT architectures. This capability simplifies debugging of elusive faults and accelerates validation workflows by providing data sets that reveal subtle, intermittent issues.
Integrated Webserver Enables LAN Remote Control and Data Access
Featuring an onboard web server, the system delivers remote access to measurement data and instrument control over a standard LAN connection. Engineers can navigate menus, adjust parameters, and review waveforms from any networked workstation or tablet without additional software. The front panels 7-inch capacitive touchscreen, with 1024 Ã 600 pixel resolution and multi-touch gesture support, offers intuitive operation in confined environments, streamlining setup and analysis workflows in crowded racks.
Three-Year Warranty Delivers Precision, Reliability, Value for IoT
Telemeter Electronic provides a three-year warranty on the T3DSO700HD series, ensuring protection for users. This package delivers high-resolution measurement capability, extensive functionality, and an intuitive modern interface. Designed to meet the rigorous demands of IoT developers, it combines exceptional precision with versatile analysis features. The robust warranty underscores product reliability, while the competitive pricing highlights outstanding value for money, making it an ideal choice for professionals seeking dependable, cost-effective instrumentation.
New T3DSO700HD Oscilloscope Series Available in Three Bandwidth Variants
The T3DSO700HD series includes three oscilloscope models offering ascending bandwidths of 70 MHz, 100 MHz, and 200 MHz under model designations T3DSO704HD, T3DSO714HD, and T3DSO724HD respectively. Each instrument integrates high resolution acquisition and versatile triggering to suit diverse measurement scenarios. Prospective buyers can access personalized technical consulting, configuration assistance, and sales support directly through the authorized partner Telemeter Electronic GmbH, ensuring seamless procurement and dedicated after-sales service. It is coupled with rapid support.
T3DSO700HD Series Delivers High-Resolution, Flexible IoT Measurement And Analysis
The T3DSO700HD series delivers an advanced oscilloscope platform tailored for IoT developers, combining 12-bit resolution with sampling rates up to 2 GSa/s for precise signal capture. An 100 Mpts memory per channel, integrated waveform generator, and specialized decode options for I²C, SPI, UART, CAN, and LIN streamline validation tasks. Multi-touch touchscreen, LAN-based remote control, and a three-year warranty enhance usability, while competitive pricing ensures performance in electronic design and debugging workflows.
