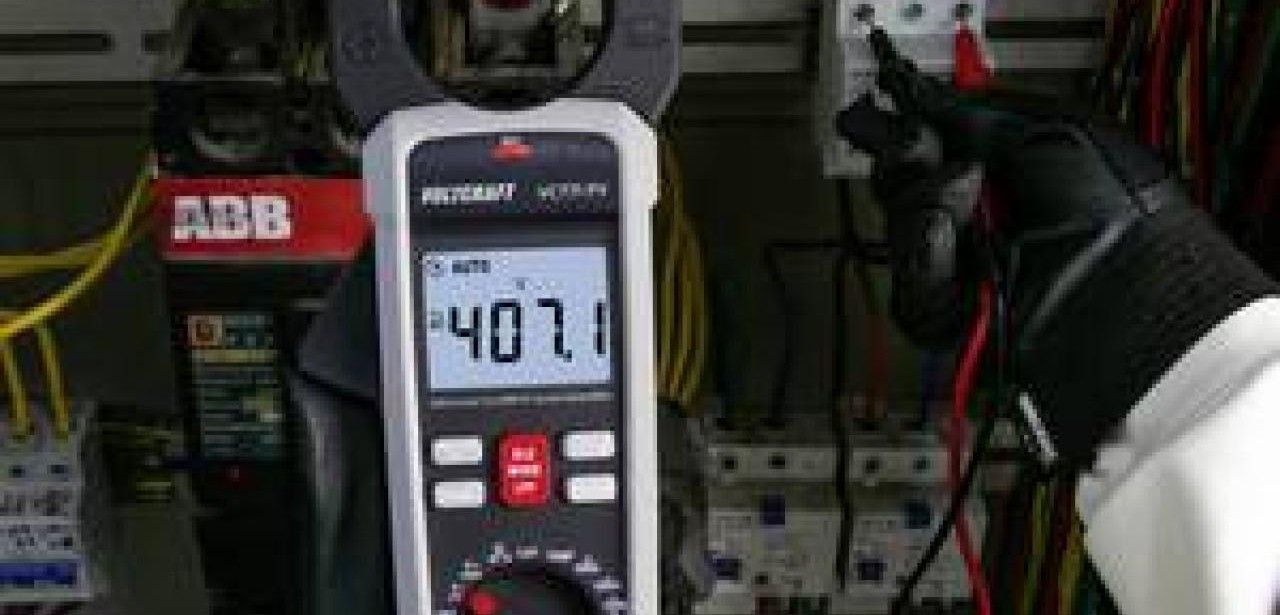

The Voltcraft VC-771 PV clamp meter provides exceptional and reliable performance for precise measurements in solar, automation, and industrial environments. It accommodates current up to 2000 A DC and 1500 A AC, as well as voltages up to 1500 V DC and 1000 V AC, serving MRO, photovoltaic, and e-mobility experts. Featuring Bluetooth data logging, IP54-rated housing, advanced functions, it enhances productivity. The 6000-count backlit LC display guarantees accurate readings in all lighting conditions.
Table of Contents: What awaits you in this article
Voltcraft VC-771 PV measures DC currents and voltages precisely
Key technologies such as photovoltaics, electric mobility, and industrial power lines require precise measurement of high currents and voltages. To meet these demanding requirements, Voltcraft has engineered the VC-771 PV clamp meter. It supports DC currents up to 2000 A, AC currents up to 1500 A, DC voltages up to 1500 V, and AC voltages up to 1000 V. This specialized instrument is now available through the Conrad Sourcing Platform.
52mm Jaw Opening Enables Cable Testing With Precision Calibration
The VC-771 PV clamp meter features a 52 mm jaw opening, accommodating oversized cable cross-sections for effortless inspections. It incorporates an automatic zero offset for DC current, ensuring precise calibration without drift. Technicians can conduct uninterrupted string current and voltage measurements, supporting solar array diagnostics. Additionally, it enables maintenance evaluations of electric motors, transformers, and variable frequency drives, even with the low-pass filter activated. This enhances workflow safety.
6000-Count LC Display With Auto Backlight Ensures Clear Readings
Featuring a 6000-count LC display with automatic backlighting for high visibility even in low-light conditions, this clamp meter ensures accurate readings at all times. Bluetooth connectivity enables real-time data logging directly to a mobile application, simplifying analysis. An LED lamp on the jaw streamlines probe positioning in tight or dim environments. Additional functions include non-contact voltage detection, data-hold, MIN/MAX capture, frequency measurement, and temperature sensing to meet diverse diagnostic requirements.
VC-771 PV Clamp: IP54 Protection, Shock-Resistant Frame, Automatic Shutdown
The VC-771 PV clamp meter features IP54-rated dust and water resistance, ensuring reliable operation in harsh environments. Its shock-absorbing rubber frame protects against drops and impacts, extending instrument lifespan. Integrated overload and undervoltage alerts notify users of hazardous conditions, while automatic power-off conserves battery life during inactivity. Certified to CAT IV 1000 V and CAT III 1500 V, this tool tackles diverse measurement tasks across industrial, automation, and MRO environments.
Voltcraft VC-771 PV Clamp Provides Powerful Versatile Testing Solution
Equipped with the Voltcraft VC-771 PV clamp meter, professionals benefit from a high-performance, adaptable instrument for demanding measurement tasks. Covering direct currents up to 2000 A and voltages up to 1500 V, it enables testing across solar, automation, and industrial settings. Features include Bluetooth data logging, backlit LCD, NCV detection, and configurable filters. Robust IP54 housing, shock protection, and CAT IV 1000 V certification ensure uncompromised accuracy, efficiency, and safety.
