SpeedMarker systems set new standards in watch engraving by combining precise pulse modulation with highresolution through-the-lens camera optics. They permanently mark microgear teeth down to one point five millimeters in diameter without inducing mechanical stress, yielding sharp alphanumeric codes and logos on delicate parts. The SpeedMark software provides a graphical interface for template-driven design, customizable parameters, and seamless, efficient integration, supporting scalability from standalone workstations to fully automated production lines.
Table of Contents: What awaits you in this article
Leading Swiss Watchmaker Employs Laser Gravure for Micro-Gear Precision

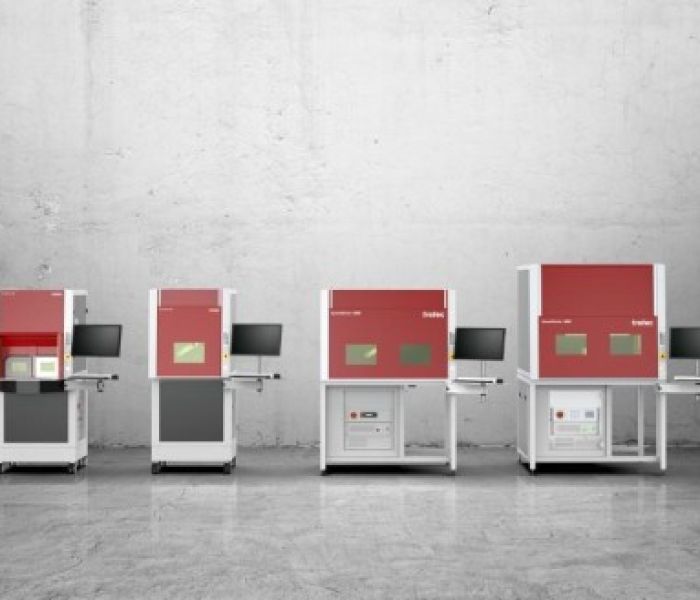

Trotec Galvo-Lasersystems product portfolio (Foto: Trotec Laser)
In watchmaking, micro-mechanical parts impose exacting standards for precision and material preservation. A prominent Swiss firm applies the Trotec SpeedMarker system to engrave gear wheels measuring just 1.5 mm across. Utilizing a contactless laser beam, the method permanently imprints alphanumeric identifiers and insignias with razor-sharp clarity, eliminating mechanical strain on delicate surfaces. This approach ensures consistent legibility and component integrity while meeting the rigorous demands of high-end horology in modern workshops.
Millisecond Pulse Control and TTL Optics Ensure Sharp Markings
By precisely modulating laser pulses with millisecond resolution, the system achieves controlled energy delivery. Paired with high-resolution optics and an integrated TTL camera, it ensures reproducible results on the tiniest structures. This noncontact technology eliminates mechanical stress while enabling consistent detailing of intricate microcomponents. The outcome is crisply defined markings, including alphanumeric codes and logos, applied reliably and uniformly to parts a few millimeters in size, regardless of geometric complexity.
Graphical SpeedMark software enables custom design implementation without coding

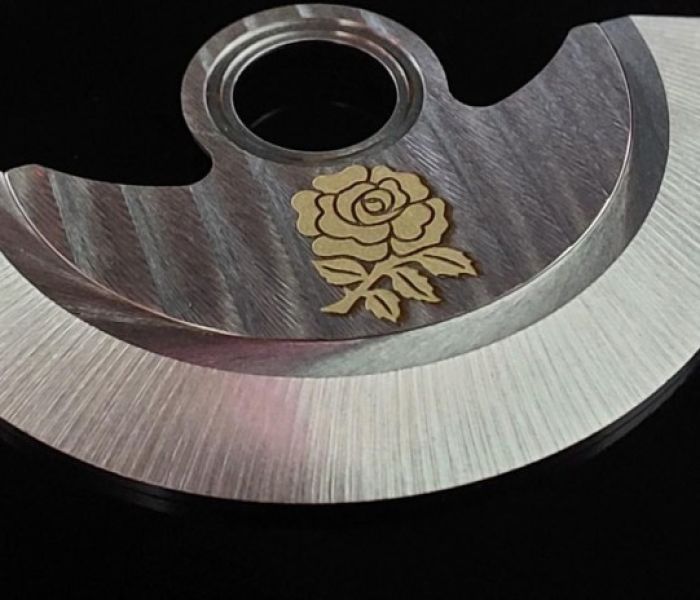

Laser technology offers a wide range of processing options for watch (Foto: Trotec Laser)
The SpeedMark software features an intuitive, graphics-driven interface enabling users to create customized designs rapidly without requiring any programming knowledge. Preconfigured templates and a comprehensive set of editing parameters streamline design workflows, reducing setup times and minimizing errors. Its user-friendly controls allow operators to adjust font styles, line weights, and positioning with precision. Seamless integration into existing production processes ensures consistent marking quality while optimizing throughput and maintaining operational flexibility.
Open SpeedMarker system architecture enables custom adaptation across automation
The modular open architecture of the SpeedMarker system enables tailored integration at various production scales, from standalone workstations to fully automated manufacturing cells. Standardized interfaces for peripheral devices and optional modules simplify capacity expansion without major redesign efforts. This modularity allows manufacturers to adjust configurations in response to changing process demands, guaranteeing smooth upgrades, optimized resource utilization, and robust protection of capital investments through scalable hardware components and seamless connectivity.
Trotec SpeedMarker offers precise micro-engraving preserving material, maximizing efficiency
Combining micron-level accuracy with a contactless marking process, the Trotec SpeedMarker laser system delivers consistent results across thousands of components. Utilizing advanced pulse modulation and high-resolution TTL camera optics, it ensures precise marking on metallic microstructures without mechanical stress. Integrated repeatability calibration maintains uniform quality over extended production runs. The intuitive graphical interface of SpeedMark software streamlines setup, enabling operators to adjust parameters and monitor marking operations in real time.
